Gear Train

The gear train is the end result of a first-year design class.

• Gear ratios were all manually calculated to achieve the required final RPM

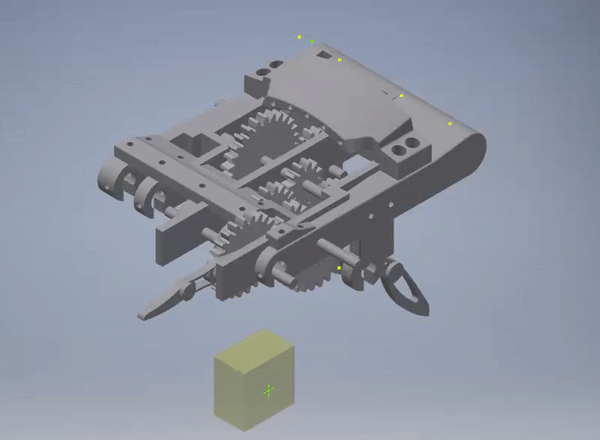

• The entire assembly is designed and simulated in AutoDesk Inventor

• Gears and the frame were fabricated using a 3D printer  and assembled by hand
